Auto Light Mould In Modern Vehicle Lighting Systems

In today's automotive industry, lighting is no longer just about visibility—it's a critical component of vehicle safety, design identity, and technological innovation. From sleek LED headlights to dynamic tail lamps with sequential turn signals, the visual language of a car is increasingly defined by its lighting systems. Behind every high-performance automotive light assembly lies a foundational manufacturing tool: the auto light mould.

The Role of Auto Light Mould in Automotive Lighting Production

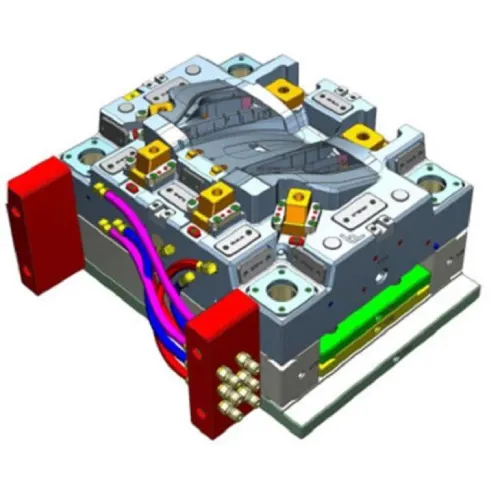

An auto light mould is a precision-engineered injection mould used to manufacture transparent or semi-transparent components for vehicle lighting systems. These include headlamp lenses, tail lamp covers, fog light housings, and signal light diffusers—parts that must meet strict optical, thermal, and structural standards.

Unlike standard plastic components, lighting parts require exceptional surface finish, dimensional accuracy, and material consistency. The auto light mould is responsible for replicating complex geometries and micro-features—such as prismatic patterns, Fresnel lenses, and anti-glare textures—that control how light is distributed on the road.

Most automotive light lenses are made from optical-grade polycarbonate (PC) or PMMA (acrylic), both of which offer high clarity and impact resistance. However, these materials are sensitive to temperature, pressure, and flow dynamics during injection. A poorly designed car lamp mould can result in defects like flow lines, sink marks, warpage, or internal stress—issues that compromise both aesthetics and performance.

To ensure quality, modern auto light mould systems are typically constructed from high-grade tool steels such as NAK80, P20HH, or 718H, chosen for their excellent polishability, wear resistance, and thermal conductivity. These materials allow for thousands of production cycles while maintaining surface integrity and dimensional stability.

Younger Mould, known for its expertise in automotive tooling, applies advanced CNC machining, EDM (Electrical Discharge Machining), and mirror polishing techniques to produce auto light mould systems capable of delivering defect-free, high-optical-quality components.

Design Complexity in Car Lamp Mould: Balancing Optics, Aerodynamics, and Brand Identity

Designing a car lamp mould is a multidisciplinary challenge that goes beyond simple cavity shaping. Today's automotive lamps are not only functional but also serve as signature design elements—think of the distinctive LED "halo" rings or animated turn signals that help identify a brand on the highway.

This means the car lamp mould must support:

Complex 3D contours – Matching the vehicle's body lines and aerodynamic profile.

Multi-cavity or family mould configurations – To produce several related parts (e.g., left and right lenses) in a single cycle.

Precision gating and venting – To ensure uniform filling and prevent air traps that cause burns or voids.

Cooling channel optimization – To maintain consistent cycle times and reduce warpage.

Additionally, modern lamps often integrate multiple optical functions into a single unit—high beam, low beam, DRLs (Daytime Running Lights), and turn signals. This requires multi-layer moulding or overmolding techniques, where different materials or colors are injected in sequence. Some systems even use insert moulding, embedding metal frames or electronic connectors directly into the plastic housing.

For example, a full LED headlamp may require a car lamp mould with separate cavities for the main lens, inner diffuser, and mounting bezel—each with unique surface textures and tolerances. The alignment between these components must be flawless to ensure proper light focus and sealing.

Younger Mould addresses these challenges through 3D simulation and mold flow analysis, allowing engineers to optimize filling patterns, cooling efficiency, and ejection mechanisms before the first steel is cut—reducing development time and improving first-pass yield.

Material and Surface Finishing Standards for High-Performance Auto Lamp Mould

The success of an auto lamp mould depends heavily on both the mould material and the finishing process. Optical components demand a surface finish that is free from scratches, pits, or inconsistencies—any imperfection will be magnified when light passes through the lens.

Most high-end auto light mould systems require a SPI-A1 or A2 finish (equivalent to mirror polish), achieved through sequential diamond paste polishing or electropolishing. In some cases, chrome plating or PVD (Physical Vapor Deposition) coating is applied to enhance release properties and corrosion resistance.

Material selection for the mould itself is equally important:

NAK80 – Preferred for its excellent machinability, polishability, and dimensional stability.

718H – A pre-hardened steel ideal for large moulds requiring high toughness.

S136 stainless steel – Used when corrosion resistance is critical, especially in humid environments.

For the final part, UV stabilizers are often added to polycarbonate to prevent yellowing over time. Some manufacturers also apply hard coatings post-moulding to improve scratch resistance—making it essential that the auto lamp mould produces a perfectly smooth surface to ensure uniform coating adhesion.

Younger Mould integrates these material and finishing standards into every stage of production, ensuring that each auto light mould meets international quality benchmarks such as ISO 9001 and IATF 16949.

Quality Control and Long-Term Mould Performance in Mass Production

Once an auto light mould is deployed in a production line, its performance over time becomes a key factor in cost efficiency and part consistency. Even minor deviations—such as a worn ejector pin or clogged cooling channel—can lead to defects that result in rejected parts or costly downtime.

Automotive manufacturers rely on rigorous quality control systems, including:

In-line vision inspection – To detect surface defects on lenses.

Coordinate Measuring Machines (CMM) – For dimensional verification.

Mold monitoring sensors – To track pressure, temperature, and cycle times in real time.

Preventive maintenance is essential. Regular cleaning, lubrication, and inspection help extend the life of the car lamp mould and maintain part quality over hundreds of thousands of cycles. Some advanced moulds are designed with modular inserts, allowing for quick replacement of high-wear sections without scrapping the entire tool.

Younger Mould emphasizes serviceability and durability in its designs, incorporating standardized components, accessible cooling lines, and wear-resistant coatings—supporting long-term reliability in high-volume production environments.

The Engineering Excellence Behind Every Auto Light Mould

The auto light mould is a cornerstone of modern automotive manufacturing, enabling the production of lighting systems that are not only functional but also visually striking and technologically advanced. Whether referred to as a car lamp mould, auto lamp mould, or auto light mould, these tools represent the convergence of optical engineering, material science, and precision manufacturing.

As vehicles evolve with adaptive lighting, smart sensors, and dynamic illumination, the demand for high-precision, complex moulds will continue to grow. Companies like Younger Mould play a vital role in this ecosystem by applying advanced design techniques, rigorous quality standards, and deep technical expertise to every project.

By focusing on innovation, durability, and performance, they help shape the future of automotive lighting—one high-quality mould at a time.
