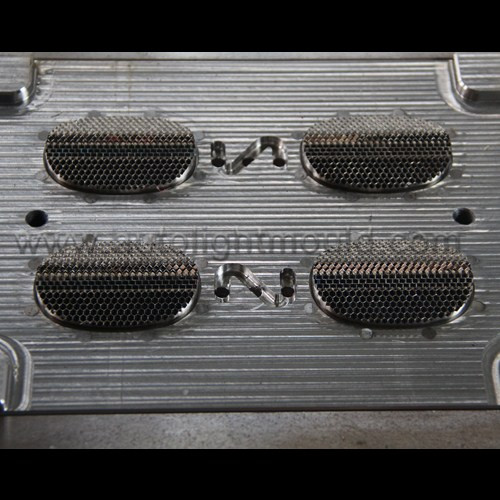

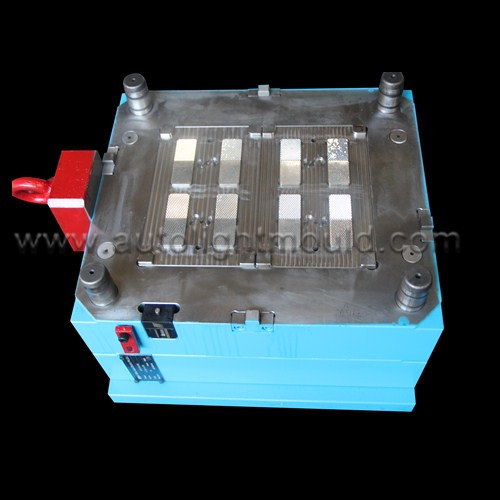

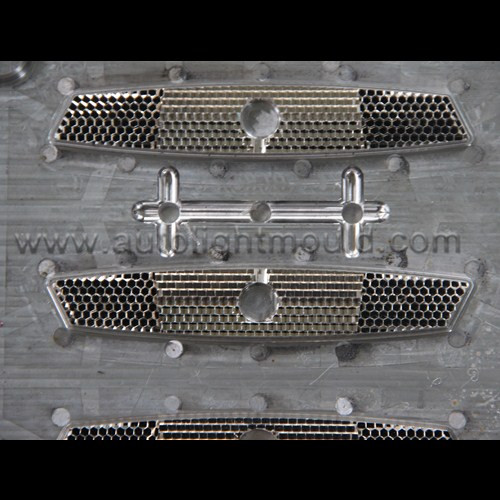

Bicycle Plastic Retro reflector Mold

Bicycle reflex reflector mold should pay attention to the following:
The material of the electroforming mold bicycle reflector reflex mould is usually Ni&Co (nickel or diamond) metal, which is soft and has a service life of about 100,000 molds. The surface finish of the electroforming is extremely high. No polishing is required, and the surface quality of the cavity is usually only Depends on the surface quality of the bronze electrode. In view of these characteristics of the electroforming parts, strictly follow the following points to improve the quality qualification rate of the electroforming mold Bicycle Spoke Reflector mould.
1. Electroforming bicycle reflector reflex mould is a special process with high production cost and long production cycle (12-15 days). If quality problems occur, it will be difficult to make up for it in terms of cost and construction period. Electroforming Bicycle front wheel reflector Welding and other remedial methods are not allowed on the mold and rework is prohibited.
2.Bicycle Plastic Retro reflector Mold electroforming is a blank after it comes out of the cylinder, with an irregular circumferential shape. We must process it in place according to the electroforming drawing. During processing, we must calibrate the reference plane reserved for the electroforming to ensure that the surrounding processing surface is consistent with the electroforming The ejection direction of the mold cavity is vertical and parallel, and the position of the cavity is ensured to be accurate (usually the center), eccentricity or other undesirable problems are not allowed to occur.
3. After the Bicycle Bicycle Plastic Retro reflector Mold electroforming is processed, you must first check the size and shape, and also check whether there are any defects on the surface of the casting. Be careful when measuring the size of the electroforming cavity, and do not damage any part of the cavity. If necessary, Dimensional inspection will be carried out under the guidance of the head of the mold room. Generally, 0.03-0.05mm will be reserved before the first mold trial of electroformed parts (i.e. products) (because electroformed parts cannot be reworked after they are made small)
