How Is a Rear Light Assy Mould Made?

The creation of a rear light assy mould is a sophisticated process that combines design innovation, material science, and mechanical precision. With the growing demand for aesthetic and high-performance lighting systems, two-color molding has become the new standard in automotive design.

As a leading Chinese supplier, Younger Mould continues to advance the industry with its world class two colors rearlamp lens mold and two colors tail light mold technologies. Their commitment to precision engineering, reliable production, and client collaboration has earned them the trust of global automotive manufacturers.

Chapter 1: What Is a Rear Light Assy Mould and Why Is It Important in Automotive Manufacturing?

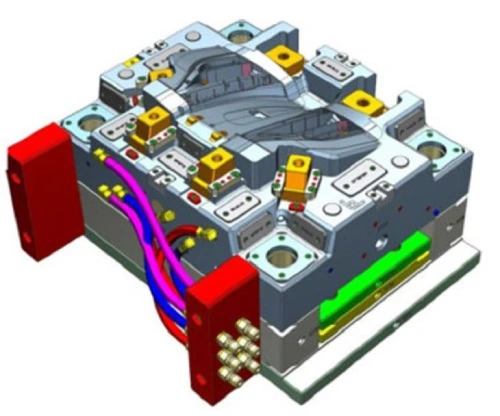

A rear light assy mould is a precision-engineered tool used to produce vehicle tail light assemblies. These molds shape and form complex plastic components that define the car's aesthetic and ensure safety through reliable light diffusion. But what makes this mould so vital to the automotive industry?

1.1 Function of Rear Light Assemblies

The rear light assembly is more than just a cosmetic feature—it's a key safety component. It includes brake lights, reverse lights, and turn signals, all integrated into one housing. For the assembly to function correctly and fit seamlessly into the car body, the rear light assy mould must be built with exact accuracy.

1.2 Why Precision Matters in Light Mould Manufacturing?

Every millimeter counts when it comes to automotive lighting. If the mold is even slightly misaligned, it can cause distortion in the light beam or result in improper sealing. That's why leading mold manufacturers like Younger Mould invest in advanced CNC machining and 3D measurement technologies to ensure every rear light assy mould meets global industry standards.

1.3 Integration of Multi Functional Lighting Components

Modern vehicles often combine brake, indicator, and fog lights into a single rear assembly. This complexity demands molds that can handle multiple cavity designs and materials—especially for two-color or even three-color tail lights. Younger Mould specializes in two colors rearlamp lens mold and two colors tail light mold solutions, ensuring perfect color transitions and optical clarity.

Chapter 2: How Is a Rear Light Assy Mould Designed and Produced?

2.1 Product Design Analysis and Feasibility Evaluation

Before cutting any metal, designers analyze the client's tail light CAD files. They check wall thickness, venting, and gate positions to ensure uniform plastic flow. At Younger Mould, engineers use advanced Moldflow simulation to predict how materials will behave during injection, helping to minimize defects like air traps or weld lines.

2.2 Designing for Two Color Injection Moulding

Two color molding is used when a tail light needs both red and clear lenses. This technique requires precision alignment between two cavities. In a two colors rearlamp lens mold, molten plastic is injected in two stages—first for the main color, then for the secondary one. The mold must switch perfectly between these cycles to create seamless transitions.

Younger Mould's two colors tail light mold designs use high-speed rotating cores and precision temperature control to achieve perfect bonding between different materials, ensuring both durability and beauty.

2.3 Mold Machining and Polishing

After design confirmation, machining begins. The steel used (often P20, 718, or S136) is precisely milled, drilled, and EDM processed. Optical parts like tail lamp lenses undergo ultra-fine polishing to reach mirror-grade surfaces. This is critical because even the smallest scratch can distort light patterns.

2.4 Trial Testing and Optimization

Once assembled, the mold undergoes several trial runs. Engineers test parameters such as injection pressure, cooling time, and material flow. Any warpage or color inconsistency is analyzed and corrected. Younger Mould's technical team uses these trials to ensure their rear light assy moulds deliver flawless optical results and meet the OEM's design intent.

2.5 Final Inspection and Delivery

The final step includes dimensional checks, sealing verification, and surface inspection. Detailed mold documentation is provided to ensure seamless integration with the client's injection systems.

Chapter 3: Why Choose Two Colors Rearlamp Lens Mold and Two Colors Tail Light Mold?

3.1 Enhanced Aesthetics and Brand Identity

Two-color injection allows manufacturers to produce rear lights that combine multiple hues and transparent zones, giving each model a distinctive signature look. The seamless transition between colors—achieved through precision mold design—enhances brand identity and luxury appeal.

3.2 Improved Optical Performance

When a two colors tail light mold is properly engineered, the different materials can serve functional purposes. For example, the red zone controls brake light diffusion, while the clear area manages reverse illumination. Proper mold design ensures each light component performs its optical role without interference.

3.3 Cost Efficiency Through Integration

Instead of manufacturing separate parts and assembling them, two-color injection molds allow both parts to be produced simultaneously. This reduces assembly time, minimizes errors, and ensures higher consistency across production batches.

3.4 Younger Mould's Expertise in Multi-Material Tail Light Moulds

Younger Mould, one of China's most experienced mold manufacturers, has mastered multi-material injection technology. Their two colors rearlamp lens mold designs combine high-precision engineering with advanced surface treatments to ensure long mold life and exceptional optical clarity.

Each project is custom-tailored, from compact car rear lights to luxury SUV assemblies, ensuring reliable production performance for every client.

Chapter 4: How to Maintain and Extend the Life of a Rear Light Assy Mould?

4.1 Regular Cleaning After Each Production Cycle

Residual resin and colorant buildup can damage lens surfaces and alter part dimensions. Clean the cavity and core areas with approved solvents and soft materials to prevent scratches.

4.2 Temperature and Pressure Monitoring

Excessive injection pressure or uneven temperature distribution can cause premature wear. Younger Mould's tail light molds are designed with optimized cooling systems and uniform pressure distribution to ensure longer service life.

4.3 Lubrication and Component Replacement

Guide pins, bushings, and sliders must be lubricated regularly. If any part shows wear or corrosion, it should be replaced immediately to avoid damaging the entire mold.

4.4 Scheduled Professional Maintenance

Send the mold to professional service every few production runs for deep inspection. Younger Mould provides complete after-sales support, including refurbishing, re-polishing, and calibration services for all rear light assy moulds and two colors rearlamp lens molds.

4.5 Proper Storage Conditions

When not in use, the mold should be stored in a clean, dry environment with anti-rust protection. Maintaining humidity control and preventing exposure to extreme temperatures can greatly extend its working life.

FAQ: Common Questions About Rear Light Assy Moulds

Q1: What materials are commonly used for tail light molds?

Mold bases are typically made from durable tool steels like P20, 718, or S136 to withstand high temperature and pressure during injection.

Q2: How long does a rear light assy mould last?

With proper care, a high-quality mold can last for over one million shots. Regular maintenance ensures consistent quality throughout its lifespan.

Q3: What is the main advantage of a two colors rearlamp lens mold?

It enables the production of complex, visually appealing tail lights that combine multiple colors and transparency levels in one shot, improving both performance and design.

Q4: Can two color molds be used for motorcycle rear lights?

Yes. Two color injection technology is also applied to motorcycle lighting for enhanced styling and reduced assembly costs. Younger Mould provides custom solutions for both automotive and motorcycle tail light projects.

Q5: How does Younger Mould ensure the accuracy of its molds?

Through the use of high end CNC equipment, Moldflow analysis, and 3D coordinate measurement, Younger Mould guarantees that every rear light assy mould meets global OEM precision standards.

Younger Mould is a premier rear light assy mould manufacturer in China, dedicated to delivering high precision two colors rearlamp lens mold solutions. Renowned for innovation, accuracy, and dependable performance, we offer fully customized mold services tailored to the unique requirements of international clients. Backed by a skilled engineering team and cutting-edge technology, every two colors tail light mold we produce ensures exceptional dimensional accuracy, consistent output, and rapid lead times—empowering manufacturers to optimize efficiency while maintaining uncompromising quality.
