How To Make A Bumper Mold?
2025-01-27
Car bumpers play a critical role in enhancing vehicle safety, aesthetics, and overall performance. But do you know how to make a car bumper mold? To create durable and high quality bumpers, China automotive injection mold manufacturers rely on car bumper mould as the backbone of production. These molds allow for the mass production of bumpers with precision, consistency, and cost efficiency.

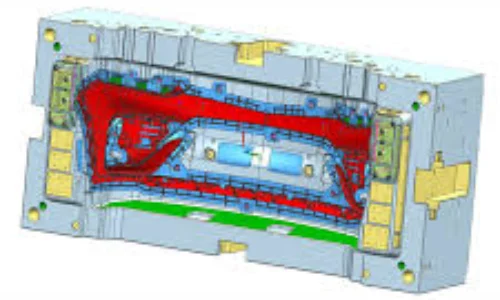

What Is a Car Bumper Mould?
A car bumper mould is a specially designed tool or die used to manufacture car bumpers. These molds are typically made of high-grade steel or aluminum and are used in conjunction with injection molding machines to produce bumpers with precise dimensions, shapes, and textures.
Molds ensure uniformity in bumper production, allowing manufacturers to meet the exact specifications required by automotive brands. The design and construction of a car bumper mold directly impact the quality, durability, and aesthetic appeal of the final product.
Why Is a Car Bumper Mould Important?
1. Precision and Accuracy
Car bumpers must fit perfectly onto vehicles to maintain their functionality and appearance. A well designed car bumper mould ensures that every bumper produced meets strict dimensional and aesthetic requirements.
2. Mass Production Efficiency
Automotive manufacturers produce thousands of vehicles annually. Using molds allows for the rapid and consistent production of bumpers, significantly reducing manufacturing time and costs.
Automotive manufacturers produce thousands of vehicles annually. Using molds allows for the rapid and consistent production of bumpers, significantly reducing manufacturing time and costs.
3. Customization
With car bumper molds, manufacturers can create bumpers with unique designs, textures, and features that align with a vehicle's branding and customer preferences.
With car bumper molds, manufacturers can create bumpers with unique designs, textures, and features that align with a vehicle's branding and customer preferences.
4. Durability and Strength
A high quality mold ensures that the bumpers produced are sturdy, durable, and capable of withstanding external impacts, enhancing vehicle safety.
A high quality mold ensures that the bumpers produced are sturdy, durable, and capable of withstanding external impacts, enhancing vehicle safety.
Materials Used for Car Bumper Mould
Car bumper molds are made from robust materials capable of withstanding high pressures and temperatures during the molding process. Common materials include:
Steel: High strength steel is often used for molds due to its durability, wear resistance, and ability to handle large scale production.
Aluminum: Lightweight and easier to machine, aluminum molds are suitable for lower-volume production runs.
Polymer Resins: In some cases, polymer resins may be used to create prototype molds.
Aluminum: Lightweight and easier to machine, aluminum molds are suitable for lower-volume production runs.
Polymer Resins: In some cases, polymer resins may be used to create prototype molds.
How To Make A Bumper Mold?
Creating a car bumper mold is a complex and meticulous process that involves several key stages. Here's a step by step guide on how to make a car bumper mold:
Step 1: Design the Mold
The process begins with designing the mold using advanced CAD (Computer Aided Design) software. Engineers create a 3D model of the bumper, taking into account dimensions, textures, and functional features.
The process begins with designing the mold using advanced CAD (Computer Aided Design) software. Engineers create a 3D model of the bumper, taking into account dimensions, textures, and functional features.
Key Considerations During Design:
Exact dimensions and tolerances
Placement of gates and runners for material flow
Ejection systems for removing the bumper from the mold
Surface finish and texture
Step 2: Select the Mold Material
Choose the appropriate material for the mold based on production requirements. For high volume production, steel is often the preferred choice due to its durability and resistance to wear.
Exact dimensions and tolerances
Placement of gates and runners for material flow
Ejection systems for removing the bumper from the mold
Surface finish and texture
Step 2: Select the Mold Material
Choose the appropriate material for the mold based on production requirements. For high volume production, steel is often the preferred choice due to its durability and resistance to wear.
Step 3: CNC Machining
After the design is finalized, the mold is machined using CNC (Computer Numerical Control) machines. This process involves:
After the design is finalized, the mold is machined using CNC (Computer Numerical Control) machines. This process involves:
Cutting the mold base to the required size.
Precision milling to create cavities and cores that match the bumper design.
Drilling holes for cooling channels, gates, and ejection systems.
CNC machining ensures high accuracy and consistency during mold fabrication.
Precision milling to create cavities and cores that match the bumper design.
Drilling holes for cooling channels, gates, and ejection systems.
CNC machining ensures high accuracy and consistency during mold fabrication.
Step 4: Heat Treatment
To enhance the durability and hardness of the mold, heat treatment is applied to the mold material. This process strengthens the steel or aluminum, making it capable of withstanding the high pressures and temperatures of injection molding.
To enhance the durability and hardness of the mold, heat treatment is applied to the mold material. This process strengthens the steel or aluminum, making it capable of withstanding the high pressures and temperatures of injection molding.
Step 5: Polishing and Surface Finishing
Once the mold is machined and heat-treated, it undergoes polishing to achieve a smooth surface finish. If a specific texture or design is required, the mold's surface is treated with specialized techniques such as sandblasting or engraving.
Once the mold is machined and heat-treated, it undergoes polishing to achieve a smooth surface finish. If a specific texture or design is required, the mold's surface is treated with specialized techniques such as sandblasting or engraving.
Step 6: Assembly
The mold consists of multiple components, including:
The mold consists of multiple components, including:
Mold base
Core and cavity inserts
Cooling channels
Ejection systems
These components are carefully assembled to create a functional mold.
Core and cavity inserts
Cooling channels
Ejection systems
These components are carefully assembled to create a functional mold.
Step 7: Testing and Validation
Before mass production, the mold is tested using a trial run. This involves injecting material into the mold to produce a sample bumper. Engineers assess the sample for defects, such as warping, shrinkage, or surface imperfections, and make necessary adjustments.
Before mass production, the mold is tested using a trial run. This involves injecting material into the mold to produce a sample bumper. Engineers assess the sample for defects, such as warping, shrinkage, or surface imperfections, and make necessary adjustments.
Step 8: Mass Production
Once the mold is validated, it is used for large scale production. The mold is mounted onto an injection molding machine, where molten plastic is injected into the mold cavity. The material is cooled, solidified, and ejected to produce a finished bumper.
Once the mold is validated, it is used for large scale production. The mold is mounted onto an injection molding machine, where molten plastic is injected into the mold cavity. The material is cooled, solidified, and ejected to produce a finished bumper.
Advantages of High Quality Car Bumper Mould
Enhanced Product Quality: Ensures uniformity and precision in bumper production.
Cost Efficiency: Reduces waste and material usage, lowering production costs.
Time Savings: Enables rapid production cycles, meeting high-volume demands.
Durability: Withstands repeated use without compromising performance.
Challenges in Making a Car Bumper Mold
While car bumper molds offer numerous benefits, creating them involves challenges such as:
High upfront costs for mold design and production.
Precision requirements to avoid defects in the final product.
Long lead times due to the complexity of design and manufacturing.
Despite these challenges, the long term benefits of using car bumper molds far outweigh the initial investment.
Precision requirements to avoid defects in the final product.
Long lead times due to the complexity of design and manufacturing.
Despite these challenges, the long term benefits of using car bumper molds far outweigh the initial investment.
Understanding how to make a car bumper mold provides valuable insights into the critical role molds play in automotive manufacturing. A car bumper mould is more than just a tool; it's a vital component that ensures efficiency, precision, and quality in bumper production.
By leveraging advanced materials like steel and aluminum, state-of-the-art CNC machining, and thorough testing processes, manufacturers can produce molds capable of meeting the demands of the automotive industry. Whether for mass production or custom designs, car bumper molds remain a cornerstone of efficient and reliable bumper manufacturing.
If you're looking to invest in high quality molds, understanding the intricacies of their design and production is essential for achieving optimal results.
Younger Mould is one of the most renowned China automotive injection mold manufacturers, recognized for its outstanding reputation and trusted position in the industry. We have earned the trust and praise of countless customers through our commitment to quality and innovation. If you're interested in our auto parts molds, including specialized car bumper mould, feel free to leave your contact information. Our team will provide you with competitive quotations and exceptional service tailored to your needs.
