How To Make A Die Casting Mold?
2025-12-01
Creating a high quality die casting mould is a complex engineering process that requires professional tooling knowledge, precise machining, and strict quality control. Whether producing motorcycle headlight heat sinks, automotive housings, or high strength structural parts, manufacturers depend on moulds that can withstand extreme temperatures, high injection pressure, and thousands of production cycles. Understanding how a die cast mould is designed and built is essential for brands seeking reliable, long-lasting production performance. This article breaks down how die casting moulds are made, why the process matters, and how industry leaders like Younger Mould—one of the trusted die cast mold makers among top China die cast mould factories—deliver precision moulds for global manufacturers.
Chapter 1: What Are the Fundamental Steps to Make a Die Cast Mould?
Understanding the Role of a Die Casting Mould
A die casting mould is a metal tool used to shape molten aluminum, magnesium, zinc, or other alloys into precise components. The mould must:
handle extreme heat
maintain strict dimensional accuracy
endure intense injection pressure
deliver identical parts consistently
These characteristics make die casting moulds some of the most technically demanding tools in the manufacturing world.
Product Analysis and Functional Requirements
Before machining begins, engineers analyze:
product material
wall thickness and rib structure
heat dissipation requirements
draft angles
assembly and installation needs
For complex heat-sink structures—such as motorcycle headlight components produced by Younger Mould—thermal flow and cooling must also be considered.
Initial 3D Model Creation
A complete 3D model determines how the metal flows, solidifies, and cools inside the cavity. Engineers also evaluate:
shrinkage behavior of the alloy
gate and runner placement
surface texture requirements
This early stage prevents defects such as porosity, warping, and incomplete filling.
Gate, Runner, and Venting Design
Great mould performance depends heavily on the gating system. Engineers determine:
metal entry point
metal flow speed
vent locations
overflow pockets
These elements ensure smooth metal filling and minimal air entrapment.
Why Younger Mould Excels?
As a professional tooling manufacturer and an experienced China die cast mould factory, Younger Mould integrates engineering simulation tools with practical production experience to create moulds optimized for both durability and high-speed casting.
Chapter 2: How Is a Die Casting Mold Manufactured Step by Step?
Steel Selection and Heat Treatment
Die casting moulds demand steel with:
high hardness
thermal fatigue resistance
stability under repeated heating and cooling
H13 and similar hot-work steels are frequently used. After machining, the steel undergoes heat treatment to improve hardness and prevent cracking.
High Precision CNC Machining
CNC milling and EDM shaping are major steps in crafting the mould cavity. CNC ensures:
accurate geometric detail
correct surface finish
dimensional stability
For heat-sink moulds like those used in motorcycle headlights, intricate fins require advanced machining to prevent deformation during casting.
EDM for Complex Geometry
Electrical Discharge Machining is essential when dealing with:
Tight corners
Thin ribs
Sharp transitions
Deep cavities
EDM allows designers to create shapes that cannot be achieved by milling alone.

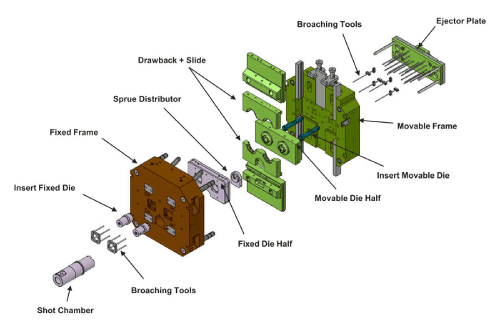

Assembly of the Mould Components
A die casting mould is not one block but an assembly that includes:
fixed half
moving half
sliders
lifters
core inserts
cooling channels
ejector systems
Proper alignment is crucial for smooth function and long mould life.
Polishing and Surface Treatment
Surface finish affects metal flow and product quality. Engineers:
polish critical regions
apply nitriding or special coatings
adjust surface textures for optical or heat-related performance
Trial Runs and Revision
Before mass production, the mould undergoes trial casting to check:
dimensional accuracy
filling balance
cooling efficiency
surface quality
Younger Mould is known among die cast mold makers for its strict testing process that ensures moulds are production-ready before delivery.
Chapter 3: Why Do Manufacturers Choose China Die Cast Mould Factories for Production?
Advanced Manufacturing Capability
Modern China die cast mould factories use cutting-edge equipment such as:
5-axis CNC centers
high precision EDM
automated polishing stations
integrated CAD/CAM systems
This allows rapid production without compromising precision.
Competitive Global Cost Structure
China's mature industrial ecosystem reduces the cost of:
raw materials
machining
labor
logistics
This makes Chinese factories ideal for large-scale mould programs.
Strong Expertise in Automotive and Motorcycle Parts
Chinese die casting specialists, including Younger Mould, excel in:
motorcycle heat-sink moulds
automotive housing moulds
LED lighting cooling components
electronics structural moulds
Their deep industry specialization ensures consistent performance for global OEMs.
End-to-End Service from Design to Production
The best China die cast mould factory is not just a machining supplier—it is a partner offering:
product feasibility analysis
mould flow simulation
precision machining
trial casting
mass-production support
Younger Mould's engineering team works closely with clients from early concept to final mould approval.
Reliability and Long-Term Stability
Durability and lifespan are essential for die cast moulds because each mould may be used for hundreds of thousands of shots. Factories like Younger Mould deliver steady quality through:
strict material selection
advanced thermal design
rigorous mould testing
Their worldwide clients value this consistency and technical strength.
Chapter 4: How Does Younger Mould Ensure High-Quality Die Casting Mould Production?
Strict Engineering and Simulation
Younger Mould analyzes every mould using thermal and filling simulation software. This reduces risk and ensures the molten metal flows evenly through the mould cavity.
Precision Machining and Quality Control
Using advanced CNC and EDM systems, Younger Mould ensures all cavity details meet exact design tolerances. Their standardized inspection process checks:
cavity dimensions
surface quality
mechanical alignment
thermal performance
Optimized Cooling System Design
Cooling channels are a critical factor in die casting. Poor cooling leads to defects and long cycle times. Younger Mould engineers create balanced cooling layouts to:
prevent hot spots
improve casting quality
reduce cycle time
prolong mould life
Strong Experience in Heat Sink and High Precision Parts
Younger Mould has extensive experience producing moulds for motorcycle headlights, especially die casting heat sink moulds. These moulds require exceptional accuracy due to thin fins and thermal performance demands.
Stable and Long Term Support
As a reliable partner among die cast mold makers, Younger Mould offers ongoing technical support, including:
optimization recommendations
maintenance guidance
repair services
production troubleshooting
Why Global Brands Trust Younger Mould
Their ability to combine engineering, machining excellence, and stable production results makes Younger Mould one of the most respected names in the industry, standing out among high-end China die cast mould factories.
FAQ
How long does it take to make a die casting mould?
Typically 30–60 days depending on complexity, material selection, and engineering requirements.
What steel is used for die cast moulds?
Hot-work steels like H13 are commonly used for strength and thermal resistance.
Why do die casting moulds cost more than plastic injection moulds?
Because they require stronger steel, more complex cooling channels, and must withstand extreme metal temperatures.
Are China die cast mould factories reliable?
Yes. Many, including Younger Mould, supply global automotive and motorcycle brands with high precision tooling.
What makes a high-quality die cast mould?
Accurate design, strong steel, balanced cooling, precise machining, and thorough testing.
Does Younger Mould support custom die casting tooling?
Yes. Younger Mould designs and manufactures custom die casting moulds for automotive lighting, motorcycle parts, and industrial components.
Two Types of Die Casting
Is Die Casting Mould Permanent?
