Model No: taillamp housing mold-6

Motorcycle Taillamp Mold

Younger Mould is a professional plastic mould manufacturer.we develop moulds for motorbike lamp mould ,Motorcycle headlamp mould ,taillight mould ,BMC reflector mould ,reflector reflex mould ,lens mould ,light housing mould ,light NPL mould ,Forward turn signal light mould .FTSL lamp light mould,Turn signal light mould ,Bike indicator light mould,license plate lamp mould,daytime running light,stoplight mould,brake light mould.
Delivery :
FOB
minimum order :
1 set
Supply Ability :
50set / Year
Country of Origin :
ningbo
Quantity :
Contact Now

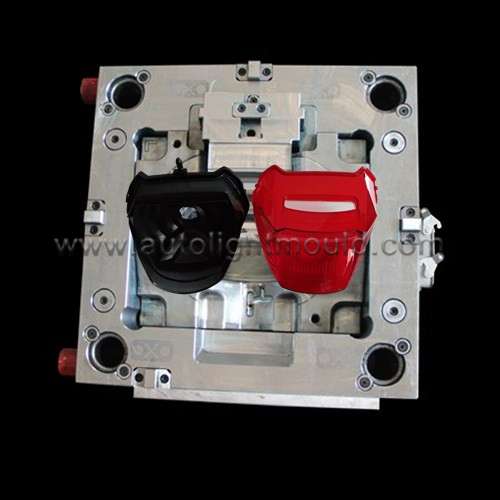

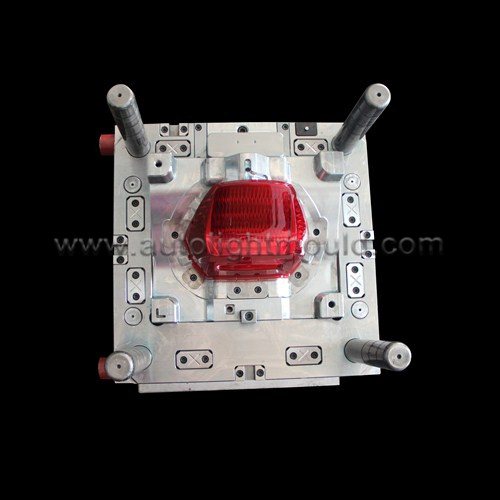

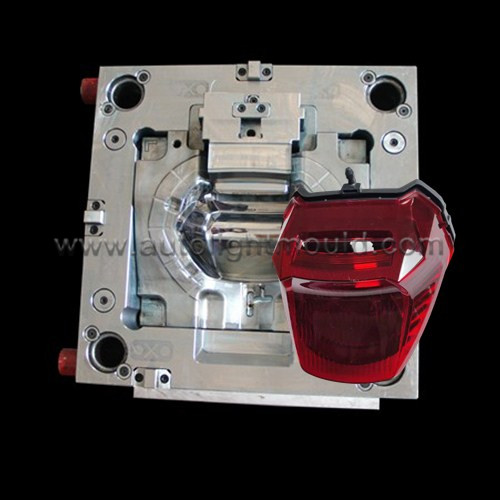

  Tail light mold for motorcycle information as below shown :

taillight Mold manufacturer
taillight Mold manufacturer in china
tail lamp mould manufacturer

Motorcycle tail lamp mold is one of the commonly used molds in modern industrial production.
The structure of motorcycle tail light mould generally includes mold frame, positioning mechanism, feeding system, pressure mechanism, stripping mechanism, demoulding mechanism, cooling system, etc.
Motorcycle taillight mould manufacturer's detailed introduction to motorcycle tail light mold is as follows:

1.Motorcycle tail lamp mould frame: The mold frame is a structure supporting the mold, which can be divided into upper mold and lower mold. The upper template is a bottom plate, which is combined with the pressure plate, the fixed plate and the inclined guide column during work, through which the plastic enters the mold cavity. The lower formwork is another base plate, usually to which a mandrel is fixed.
2. The positioning mechanism of Motorcycle lighting mold: The positioning mechanism consists of two parts, namely upper positioning and lower positioning. The role of the positioning mechanism is to ensure that the part remains in the correct position during the injection molding process. Usually, positioning pins or positioning columns are used to position the upper formwork and the lower formwork.
3.Motorcycle tail light mould feeding system: The feeding system conveys the injection molding material to be injected into the mold into the mold cavity. It is composed of feed inlet, nozzle, hot runner and other parts.
4.Motorcycle tail light mold pressure mechanism: The pressure mechanism usually includes pressure plate, fixed plate, lower pressure plate, master cylinder and other parts. During the injection molding process, the pressure mechanism forces the injection material to fully fill the entire mold cavity by pressing the mold.
5.Motorcycle tail light mold stripping mechanism: The function of the stripping mechanism is to remove the parts from the mold after the injection is completed while ensuring that the parts are completely solidified. The usual stripping mechanism includes springs, exhaust valves and other parts.
6.Motorcycle tail lamp mold demoulding mechanism: The role of the demoulding mechanism is to remove parts from the mold. It generally consists of one or more pistons, sliding plates and bearings.
7.Motorcycle tail lamp mold cooling system: The cooling system discharges water along the mold surface through cooling pipes to reduce the mold surface temperature to ensure that there will be no deformation or under-detection problems in injection molded parts.
To sum up, a motorcycle tail lamp mold includes multiple parts and mechanisms, many factors need to be considered, and reasonable design and manufacture are required. Injection molds have greatly improved the production efficiency of motorcycle tail lights, and the tolerances are smaller and the products are more accurate.

Automotive Motorcycle Lighting Mould Manufacturer

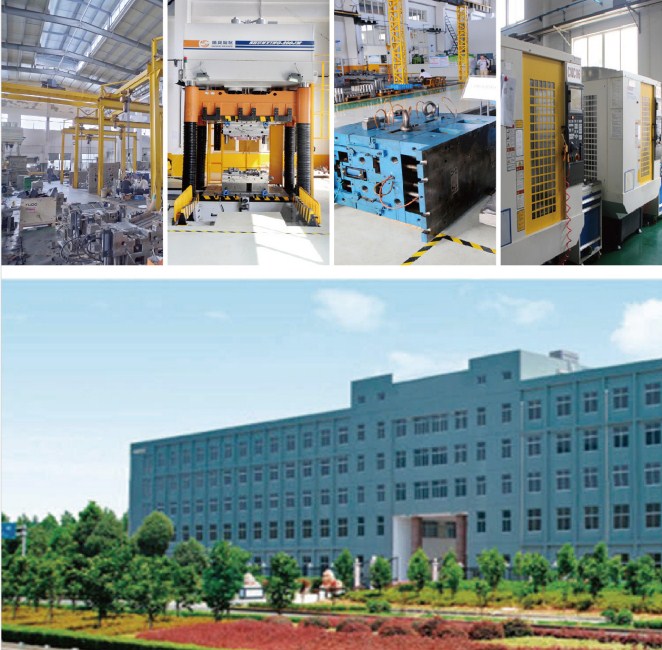

ZheJiang HuangYan Younger Mould Factory is located in China mold town -Huangyan Taizhou.It is a professional plastic mould .Our factory has been established for twenty years ,founded in 1990s .We design and produce Automotive lighting mould. Our products are widely used in Automotive and motorcycle Industry,Such as : headlamp mould ,taillamp mould,BMC mould ,reflector reflex mould ,light guide mould ,thick wall optics mould ect. Younger Mould Factory provides small volume injection molding and custom injection moulding with advanced CNC machining centers; EDM machines; wiring, machining, and grinding machines, drilling, and molding machines,and some imported equipment. experienced and professional design teams, rich management experience and a strict quality assurance system, we provide customers with comprehensive and high-quality services. People in our company with integrity and responsibility.

Headlight Mold manufacturer
Headlight Mold manufacturer

Automotive front lighting mould Design Team

Younger Mould have our own engineer team for making 2D and 3D design for headlight mold and taillamp mould .our team hard work on the mould design project has been exceptional,they attention to each detail in the design, the careful consideration of manufacturing processes, and the accuracy of the calculations have all contributed to the success of the project. The mould design is of such high quality that we are able to meet our production goals with ease. Our engineer team's contribution to the mould project has been invaluable.

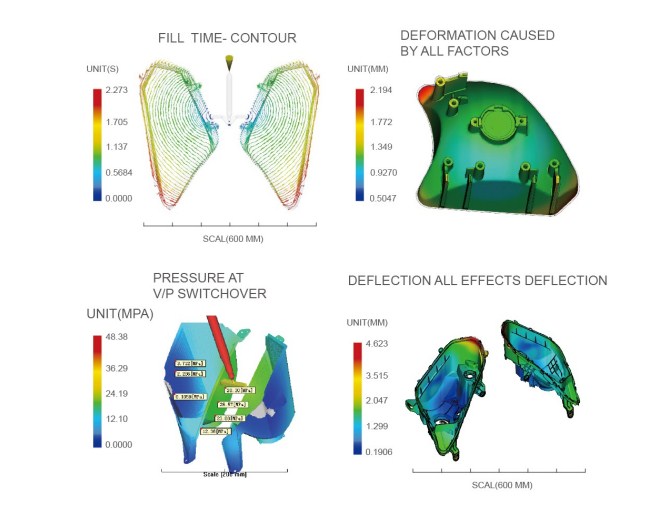

Lamp Mould Flow Analysis Before Design Mould


There are multiple benefits to MFA As below shown :
Wall thickness defect/Gate location /Mold cavities fill consistently and uniformly/Discover defects in design Process
Avoide expensive machining errors and rework/Improve manufacturability
Reduce Mould making time/Enhance efficiency and Mould quality
Find potential visual defects, air traps, sink marks and weld lines./Analyse different material options

Headlight Mold manufacturer
Headlight Mold manufacturer

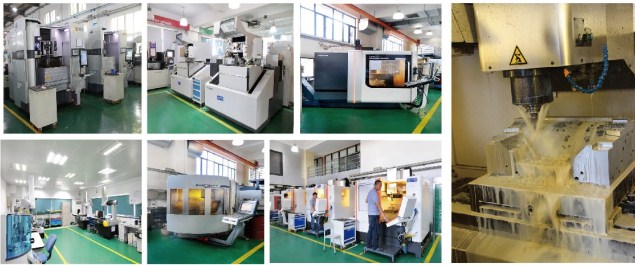

Younger Mould own large imported CNC machining centers, CNC, EDM, large mould spotting machine and other advanced processing equipment to ensure the high-precision, high-quality products.wiht our machining centre will bring high efficiency production cycle and quality assurance to customers.
Mold processing equipment includes CNC lathes, CNC milling machines, wire cutting machines, wire cutting machines, drilling machines, EDM machines, etc. Their main function is to manufacture molds through machining to meet the manufacturing needs of different products. These devices are usually high-precision, which can ensure the accuracy and quality when manufacturing molds.


How to design a high quality motorcycle headlight mold?
1. Material selection: Choose high-quality injection mold materials, such as high-quality mold steel, to ensure the life and performance of the mold.
2. Structural design: According to the characteristics and requirements of the product, a reasonable injection mold structure is designed to meet the precision requirements and production efficiency of motorcycle headlights.
3. Cooling system: Reasonably design the cooling system to improve production efficiency while ensuring the quality and precision of injection molded parts.
4. Precision control: When designing, the pressure, temperature, speed and other parameters of the injection molding machine should be considered to ensure the dimensional accuracy and surface finish of the injection molded parts.
5. Selection of plastic materials: Select plastic materials suitable for motorcycle headlights, and properly handle them in the design of injection molds to ensure that there will be no defects such as shrinkage cavities and cracks.
6. Test and inspection: After the injection mold produces injection molded parts, strict test and inspection are required to ensure that the quality of the injection molded parts meets the requirements.
In short, to design a high-quality injection mold for motorcycle headlights, it is necessary to do a good job in material selection, structural design, cooling system, precision control, plastic material selection, and testing and inspection.

Head lihgt mold manufacturer in china

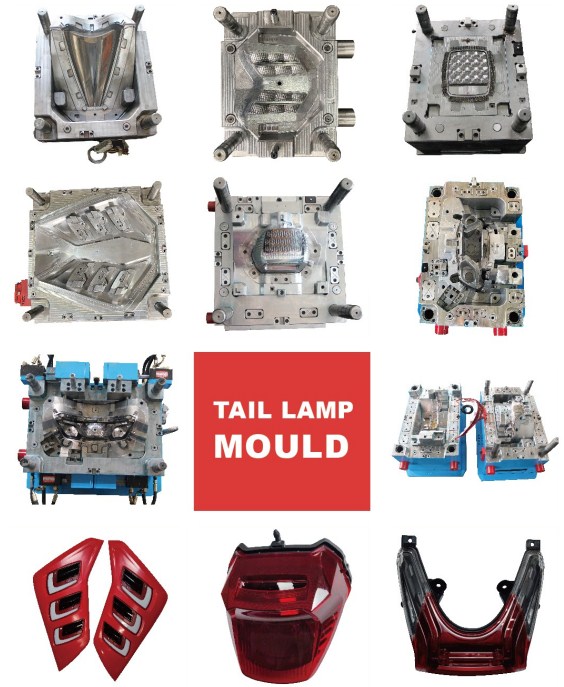

tail lamp mould manufacturer in china

Motorcycle taillight injection mold design point as below shown :Mold design needs to consider the following factors:


1. The shape and size of the tail light housing need to be determined according to samples or drawings.
2. The model and injection volume of the injection molding machine need to be selected according to the production requirements and the characteristics of the plastic material.
3. The size and material of the guide post and guide sleeve must meet the requirements of the injection molding machine to ensure the stability and precision of the mold.
4. The design of the cooling water channel needs to consider the cooling effect and circulation flow to ensure the service life of the mold and the quality of injection molding.
5. The position and shape of the injection port need to be optimized according to the mold structure and the flow characteristics of the plastic material to obtain the best injection molding effect.
To sum up, the design and manufacture of motorcycle taillight injection molds need to consider multiple factors comprehensively to ensure the quality of the mold and the injection effect.



Injection Molding Service for Light Guide  Break off sth/Optics Lens Mould /Transparent Parts

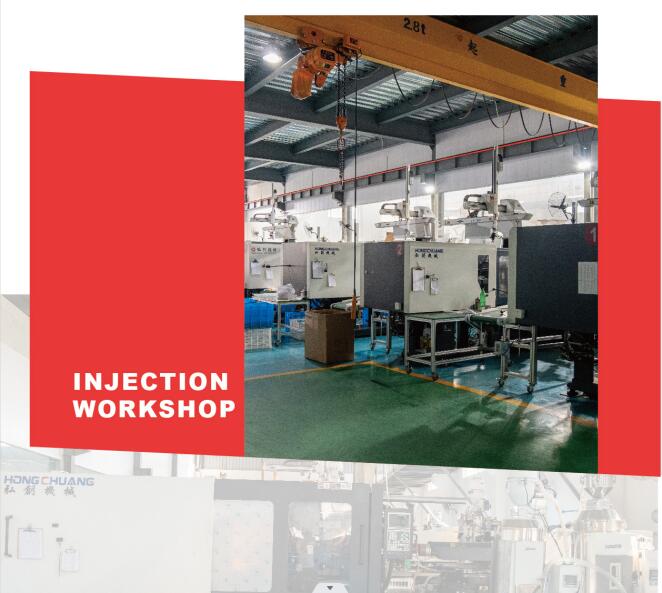

Our injection molding machine production service mainly produces car light lenses and light guide strips. We have advanced injection molding machine equipment and a professional technical team, and the quality of the products produced has been highly praised by customers.
Our car light lenses and light guide strips are made of high-quality raw materials, such as optical grade PC, PMMA and high-quality aluminum. The product has good optical properties and physical properties, ensuring the stability and durability of the product, and also has excellent light transmission and high temperature resistance, which can meet customers with different needs.
If you have any production needs about headlight lenses and light guide strips, please feel free to contact us, we will provide you with professional and high-quality services.

Optical optics projector lens mold manufacturer

automotive lighting manufacturer

FAQ
Q: Are you mould factory?
Answer: Yes, Younger mould factory is established in 1999 which specialized in making injection mould.

Q: What kind of mould you can make?
Answer:Head lamp mould ,Tail lamp mould, Thick wall mould ,Light guide mould , optics optical mould ,Fog lamp mould ,reflex reflector mould ,license plate lamp mould ,front turn signal lamp mould ,daytime running lamp mould ,high mount stop lamp mould ,transparent parts production lines ect.
Q: What about your payment terms?

Answer: 50% prepayment in advance, and the balance should be paid before shipment.


Q:Mould T0 trial date ?
Answer:We need calulate the date after customer confirm all drawing . mould making date is not including the drawing design date .


Q: How's annual output of your company?
Answer: We can make 200 sets each year.

Q: How about mould machining report ?

Answer:Our engineer team will send the machining report PPT to client on every Friday .


Q: How long of the mould warranty period?
Answer: The mould warranty period for 1 year(Damage caused by human factors or accident are not within the the scope of warranty), 50% spare parts will send to customer for free.
