Light guide strip mold

"YOUNGER MOULD FACTORY"specializes in manufacturing injection molds for automotive light guide strips mold , thick-wall lens molds ,combined front light guide mould,front combination light guide mould,thick wall light guide mould

combinatino headlight light guide mold,upper light guide mold

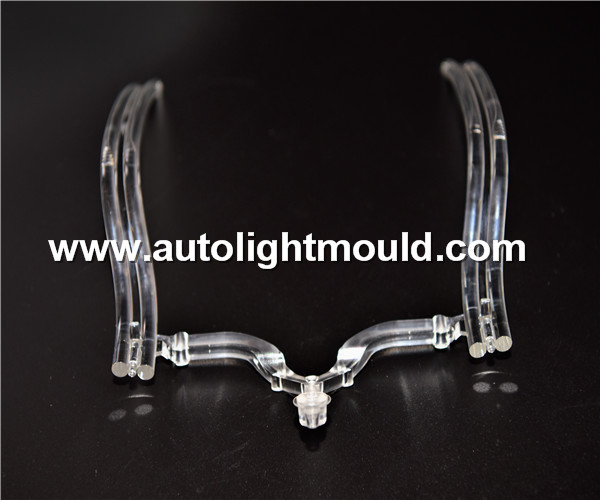

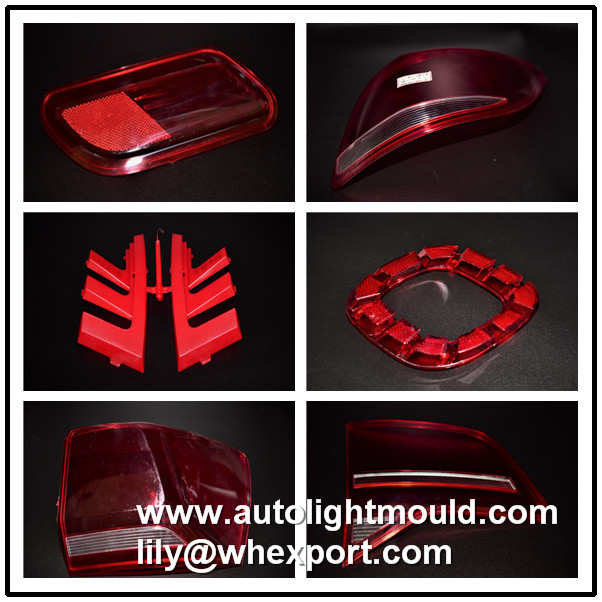

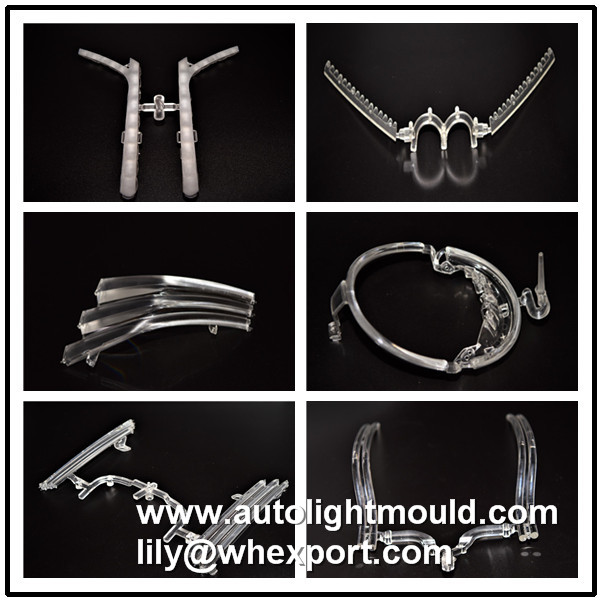

trunk light guide mould,high with a combination of headlamps turn signal light guide mould,tail lights light guide mould,combination of rear light light guide mould,high light brake light pipe mould,rear light guide strip mould

back door light guide strip mould,real light guide strip mould,guide bush mould

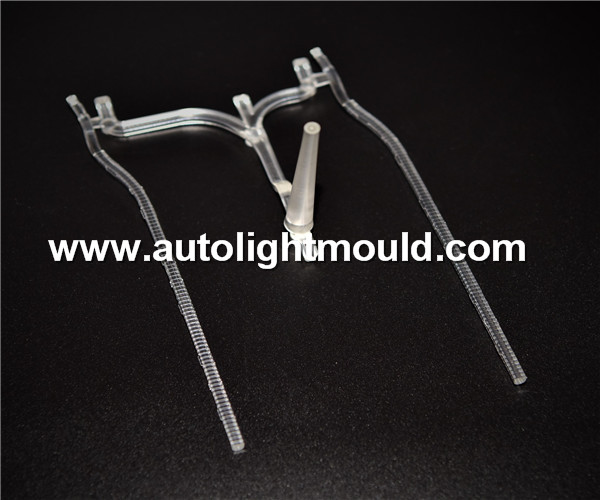

front light guide strip mould,guide pin mold

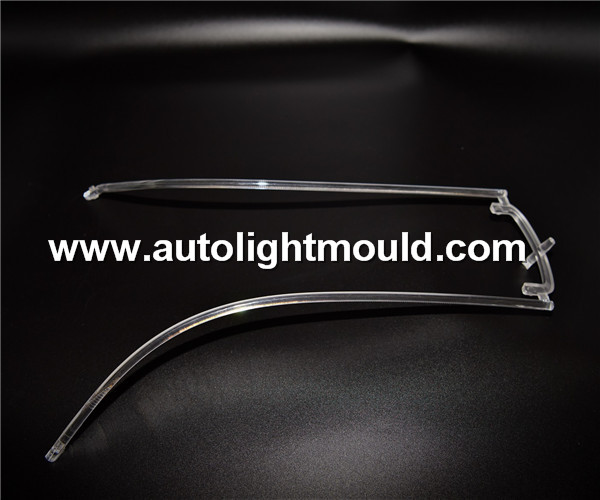

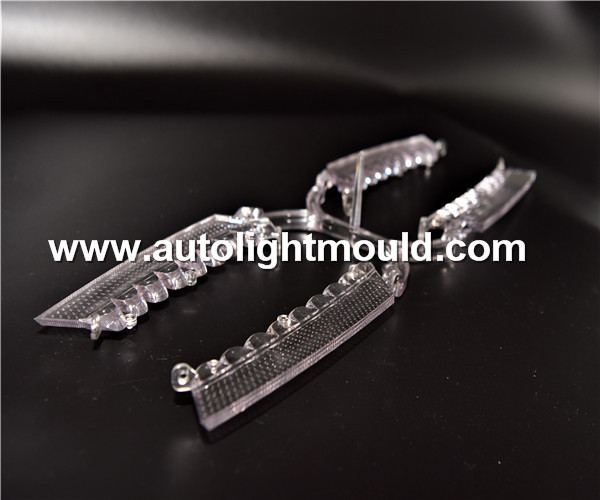

headlight position light guide strip mould and guide pin injection molding for automotive lights.

The following is an introduction to the product of the car light guide strip mold structure.

Injection moulding method of plastic car light guide strip injection mould:

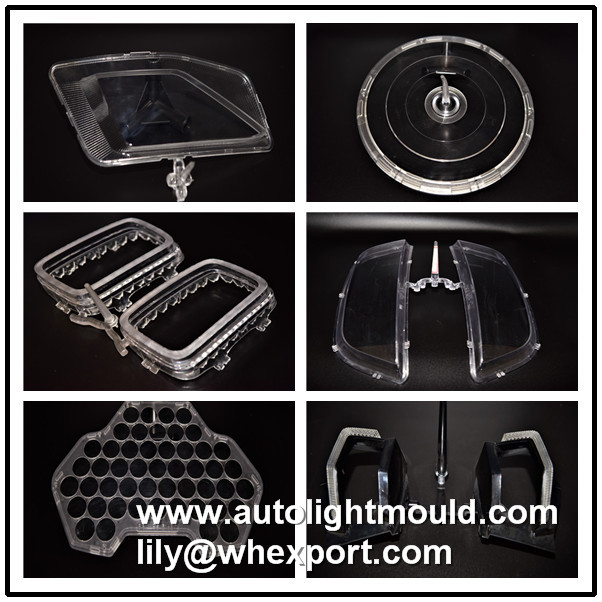

YOUNGER MOULD FACTORY focuses on the manufacture of injection molds for automotive plastic thick-wall optical lenses,

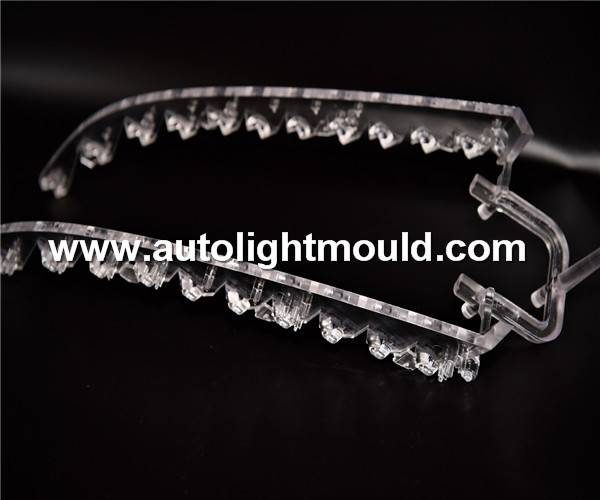

Specializing in LED car lamp mold design, optical product mold design, automobile optical plastic thick-wall lens mold, light guide injection mold, automobile lamp light guide injection mold, automobile lamp plastic lens thick-wall mold and other injection mold manufacturing.

Introduction to the production of the mold structure of the light guide strip for car lights, and the mold design method

The light guide strip structure of a car lamp includes a base body; a plurality of light guide units are arranged on the base body; each light guide unit has a first side and a second side, and a top is formed at the top of the first side and the second side ; The height of each light guide unit is gradually variable in size, each light guide unit has a shape bending variable, and each light guide unit itself has a top undulation variable relative to the substrate. Or a light guide strip structure for vehicle lights, comprising a base; a plurality of light guide units are arranged on the base, each having an outer cone surface, and an inner cone surface and the outer cone surface form a convex shape. Or a light guide strip structure for vehicle lights, comprising a base; a plurality of light guide units are arranged on the base, each having a cone, and an arc is connected to the cone.

Introduction to the mold structure of the light guide strip for car lights.

A light guide strip for an LED car light, comprising a light guide strip on which LED particles are mounted, and is characterized in that the light guide strip is a quadrilateral light guide strip integrally made of transparent resin, and is integrally made of transparent resin. The quadrilateral light guide strip has a wave-shaped light distribution pattern, and the light of the LED particles is reflected by the wave-shaped light distribution pattern. The light guide strip is made of resin material by an injection molding machine. The quadrilateral light guide strip is integrally injection molded, which is convenient to manufacture, does not require assembly, and improves production efficiency. The LED particles are installed at one end of each side of the four light guide strips. When light is irradiated on the wave-shaped light distribution pattern, it is reflected by the wave-shaped light distribution pattern, and the transparent resin material has a large refractive index, which can realize the total reflection of the light, and it is reflected to the other side of the light guide strip because the exit angle is small. The light is emitted directly to achieve the signal lighting effect.

What are the defects in the mold design of the automobile light guide strip?

The injection mold for the light guide strip for automobile lights has a reasonably designed light guide without defects.

If the material is selected improperly, it will burn out.

For the injection mold of automobile light guide strip, normal automobile light guide will not have the above problems.

The technology of the injection mold for the light guide strip of the automobile lamp:

The light guide strip of the car light is a transparent plastic part, which is used to refract the light so that the light passing through the light guide strip forms parallel rays. Since the light guide strip is a transparent plastic part with thicker wall thickness and longer overall size, if it is processed according to the traditional injection molding process, the plastic part needs to be directly ejected by the ejector pin, which will easily cause the light guide strip to be damaged or left behind. The obvious traces of the ejector pin directly affect the light guide performance and aesthetics of the light guide strip molding.

"YOUNGER MOULD FACTORY"specializes in manufacturing injection molds for automotive light guide strips and thick-wall lens molds for automotive lights.
